Wifi+GSM+GPRS Security Alarm System
APP Remote Control
Up to 100 storage locations for the learning of remotes and wireless detectors.
Support Multi-Language for optional
Such as: English/Russian/German/Polish/Spanish etc.
>>>Daily Operation Nouns:
Arm:Set security task(i.e.Anti-burglar),Make the host into alert state,also known as Arming ,Alert or Booting.Designate security guard mission(i.e Anti burglar),set alarm host into on-guard status,also called Arming,Alert or Power on.
Stay Arm:In case the user is at home,only set alert to entrance/exit or perimeter,also called home alert.
Disarm:Withdraw security task(i.e.Anti-burglar),also called withdraw alert or power off.
Trigger:Under Arm state ,detector detects someone or door is opened ,it wwill trigger the detectors and make alarms.
Exit delay:after setting the host to be ARM state,in order to avoid making alarms for the users leaving and passing the Arm zones,delay the alarm time.
Entry delay:When users come back and pass the Arm zones,the host will not immediately make alarms,it will allow users to disarm the host with some time,the host will make alarms if time out beyond the disarm.
Alarm:When the host create alarm action,acousto-optical alarm signal arises,the host will send SMS message to the preset mobile phone ,dial the preset user telephone number,create push to mobile phone APP.or send alarm information to intranet security center.
*2.4inch TFT display screen,concise user interface and menu hint disign.
*Main interface status bar,date/clock indication,fairly obvious alarm host status.
*Built-in powerful performance CPU master based on 32-bit Cortex-M3 core.
*Based on uCOS-III operating system.with multitasking design,great user operation exprience.
*WIFI/GSM//GPRS intranet alarm system,support different alarm channels.like APP push/SMS/voice monitoring/intranet center etc. to ensure the alarm performance stable and reliable.
*Support SMS arm/disarm and voice arm/disarm.
*Support up to 100 learning /storage location for remote control,RFID cards and wireless detector.
*Support many defense zones ,such as gate ,SOS,bedroom,window,balcony,perimeter,smoke,gas,carbon monoxide,water leaking.etc.
*Support the main power malfunciton ,backup power shortage,tamper alarm and other extended alarm.
*Support entry/exit zone,indoor zone,perimeter zone,24-hour zone etc.
*Up to 5 groups preset alarm phone numbers ,SMS on/off and dial on/off can be set respectively.
*Support external wireless siren.
*Support timing arm and disarm.
*Can store and inquire daily operation records and alarm records.
*GSM Network clock synchronization,to ensure accurate clock ,and support country time zone setting.
*Support multi-language menu display,voice prompts and alarm SMS setting.
*Can record 20 seconds voice message and alarm voice.
*Telephone function,support 5 groups re-dial number.
*User-friendly APP operation experience and user interface.
*Push Arm/disarm message to APP
*Support APP remote arm/diarm,parameter setting and accessory management.
*Online GPRS to obtain equipment status,automatic alarm when offline.
*Reserved remote GPRS TCP/UDP protocol channel ,compatible with multiple alarm center networking protocol to facilitate network alarm.
*Center remote control.
Power input:DC 5V(micro USB standard interface power supply)
Wi-Fi bands:IEEE802.11b/g/n RF standard
Standby battery:3.7/500mAh lithium-ion
Temperature range:0-55 degree
Humidity range:<80%RH ( NO Freezing)

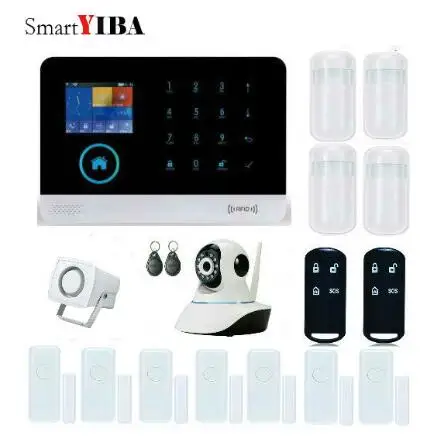

1 *Alarm Host
4*Wireless PIR Motion Sensor
7*Wireless Door Sensor
2* Wireless Remote Controller
2* RFID Keyfobs
