G90B Plus 2.4G WiFi GSM GPRS SMS Intruder Wireless Home Security Alarm System HD 720P Wifi IP Camera Wireless Smoke Detector

Special Price  G90B Plus 2.4G WiFi GSM GPRS SMS Intruder Wireless Home Security Alarm System HD 720P Wifi IP Camera Wireless Smoke Detector

Special Price G90B Plus 2.4G WiFi GSM GPRS SMS Intruder Wireless Home Security Alarm System HD 720P Wifi IP Camera Wireless Smoke Detector

Product ID : 32741222582
Price : $169.99
Discount Price : $68.25


Item specifics
  • Communication Interface:
  • Brand Name:
  • Video Interface:
  • Model Number:
    G90B plus
  • Alarm Type:
    GPRS,The Alarm,Apps Control,SMS
  • Display:
  • Password Keyboard:
  • Arming Type:
  • GSM Frequency:
  • Wireless Study Coding:
    100wireless zones+8 wired defense zones
  • APP:
  • 7 different Voice for choose:
    English,Russian, Spanish,French,Turkish,Netherlands, Swedish
  • Feature:
    Work with IP camera
  • Network:
    GSM Wifi GRPS

Product Description

2.4G WiFi GSM GPRS SMS Wireless Home House Security Intruder Alarm System IP Camera Smoke Detector






We upload this alarm system's operation video on youtube,please contact us to get the web link if you need.

Latest Vesion–Big Screen,7 different voice

English,Russian, Spanish,French,Turkish,Netherlands, Swedish

in one panel for you to switch

We notice many users require system to remind them close the doors or windows when they go away the house.And now our company design a new door sensor (D07) for this alarm system which one can remind users close the door/window when they outside.When user arm the system and the doors/windows install this door sensor are opening,the alarm screen will show "xx zone error" and users' phone will get the message.

$_10 (10)


Main Function And Feature:

1WIFI + GSM + GPRS word menu home alarm system
2. Android + IOS APP application easily control, Easy to give authorization. The first one Scanning QR code in the APP page will become the administrator
3Notification push when there is no WIFI, the host will push via GPRS
4Work with IP camera,The IP camera APP embeds in the host APP.you can
view the IP camera by phone.

5Workable with RFID wireless keypad ,support doorbell function
6. Zone names can be revised by users
7. Relay usages name can be revised by users
8. Independent zones. Every zone can be set be independent zone,
which can only disarm by administrator’s APP, The feature is fit for finance office.
9. Leaving message remotely in APP or host.
1) When leaving message in APP, such as: I will go home late, don’t wait for me.
Next the message is automatically mapping to the host. Users will see the light to reminder.
2) When long press the “record” button for 3 sec in the host panel, will start a
new memo, and automatically mapping to the APP end. Slightly press”record” will play the new message.
10. Information push promptly when AC power lost or recovered or
detectors in low voltage
11Build-in wireless transmitter, can control 4 wireless relay outputs and
wireless sound&strobe siren.

12. 96 wireless zones+4 wired defense zones, Can store 6 alarm call phone No.
13. wireless encoding between host and detectors, innumerable detectors for
each wireless zone
14. Arm/alarm Delay for each defense zone. Timed arm/disarm function
15. 10-second voice message recording
16. Support Monitoring and two-way intercom function.
17.The host can be used as a hand-free phone.

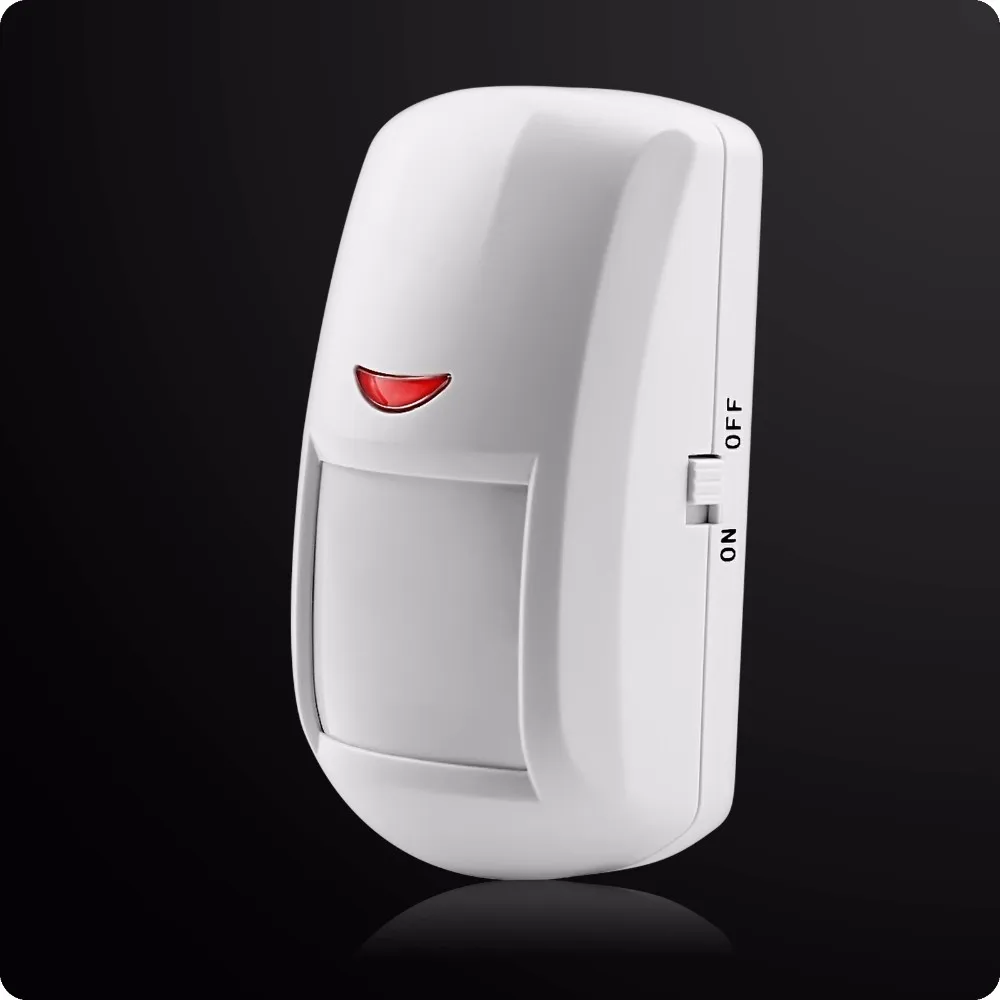

Wireless PIR Sensor

Power requirements: 12 to 8.4V DC (23A DC = 12V battery )

Current consumption: <20µA, <15mA while transmitting

Transmitting frequency: 315 ±0.2MHz/433 ±0.2MHz

Transmitting duration: <1s

Transmitting distance from host: >80m (no obstacle)

Installation: <15mm between part A and part B

Coding type: fixed code

Dimensions (L x W x H): 71 x 36 x 15mm

Operating temperatures: -10 to 40°C

Humidity: <90% RH

Shell color: white

Battery Life: 6 months

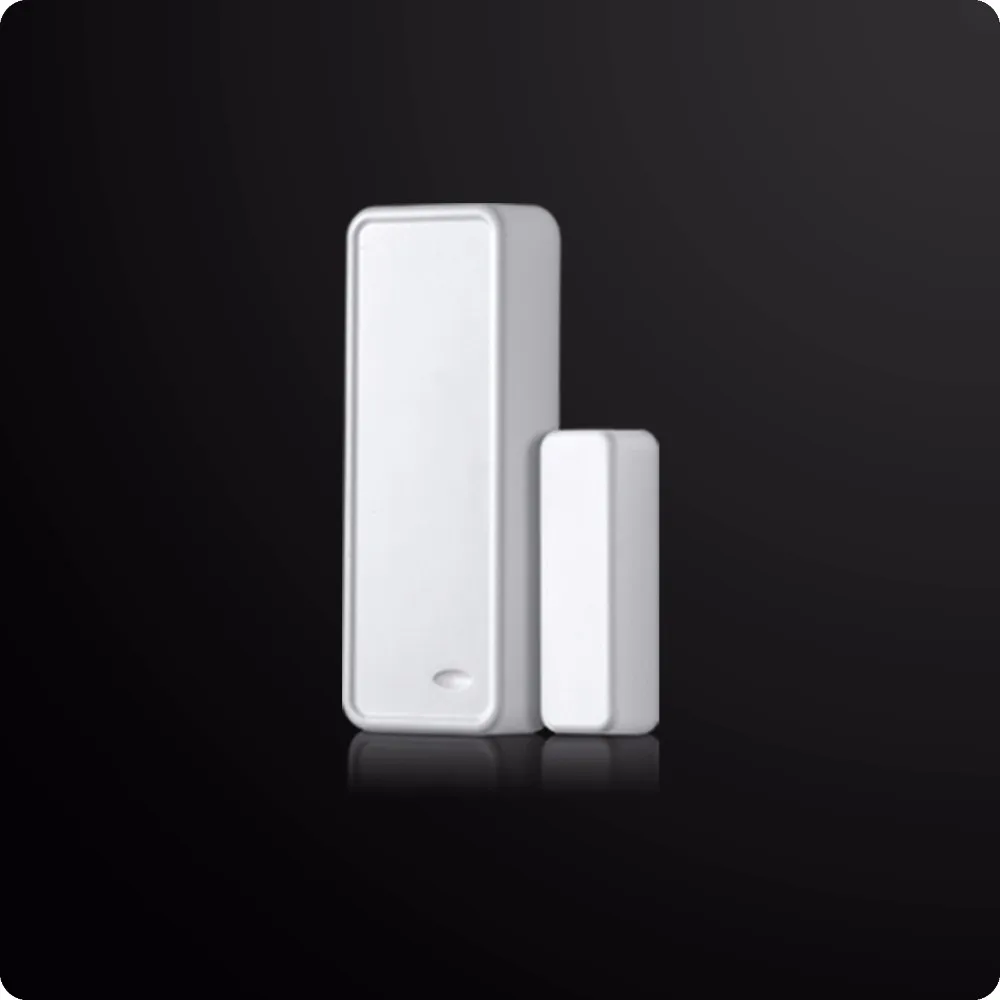

New Wireless Door Sensor

Built-in Antenna

Operating Power: 23A 12V

Transmission frequency: 433MHz

It will send the alarm signal to control host once the door or window is opened


Compound multi-layer design

Built-in omnidirectional antenna

Superior circuit design

High-performance and low power consumption

Superior ABS material

Working frequency:433MHz

Shock resistence:4.7M,1.2M.3.5M,300k

Transmission distance:50-150m in open area.

Wifi IP Camera

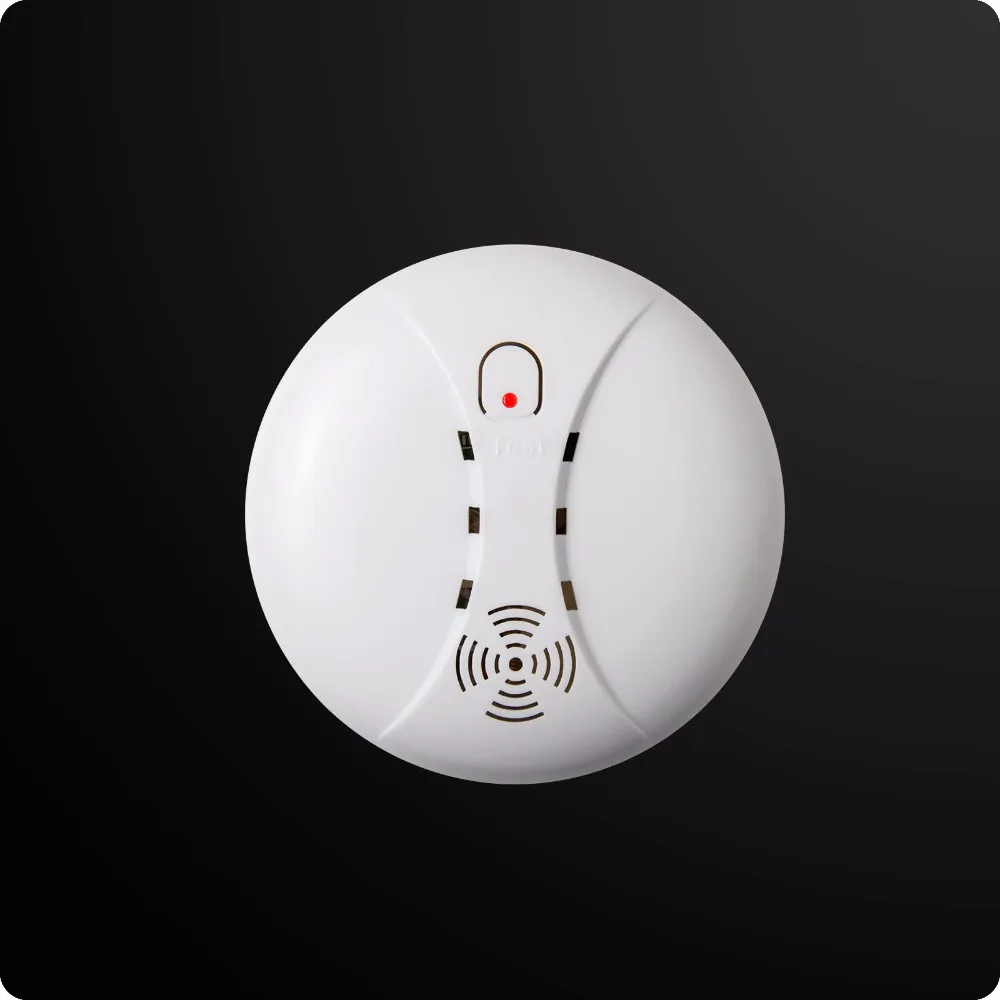

Wireless Smoke Detector
1.Independent type suction a top installation, fireproof material, easy installation, no commissioning;
2.The built-in special IC, stable performance, high sensitivity;
3.The optical principle smoke measure the room,can accurate detection or fire from the early smoke
4.Can simulate alarm test for alarm;
5.9V battery power supply,Surveillance state current less than 10uA,alarm current less than 12mA;
6.Voltage alarm function. When the battery voltage is lower than 6.8V,issued a prompt remind users change the battery;
7.Alarm vilume:   >85DB;
8.Temperature range: 10-60 °
9.Protection area: alarm installation height 6 meters,Protection
10.9V battery,auto reset stainless steel shield,
11.LED indicate alarm,dustproof,mothproof,anti white light interference;
12.Alarm Output: relay output N.O./N.C.

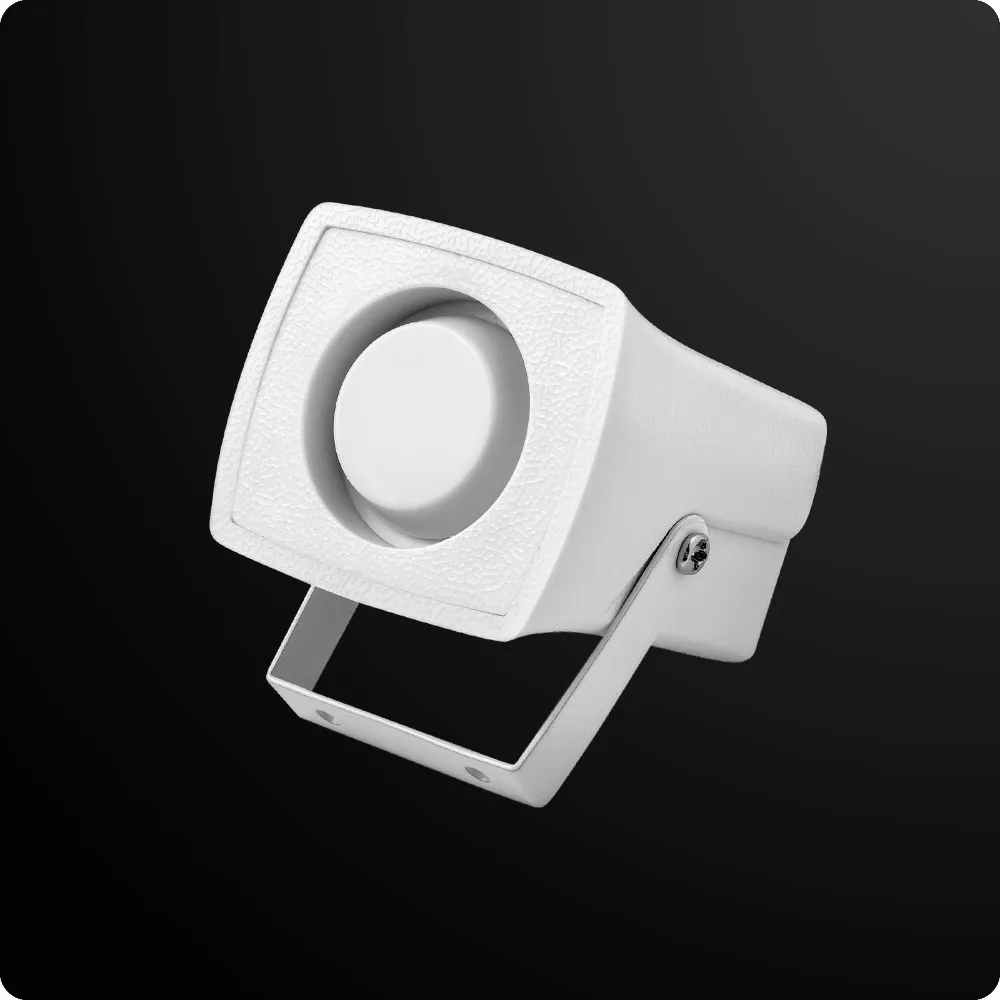

Wired Siren
Wireless Remote Controller
1.Transmit Freqency: 433mhz
2.Coding Type: Fixed Code
3.Power Supply:12V 27A*1
4,Battery Life: 8 months



     GS90B panel *1  (without SIM card and Original Box)

     04 Wireless pir motion sensor * 4

     07 Wireless door/window sensor * 5

     07 Remote control * 2

     04 Wireless smoke detector * 1

      Dual Antenna Wifi IP camera*1

      03 Wired siren * 1

      Power adapter * 1  (UK/EU/US/AU,We will ship the correct power adapter to you based on your country)

      English user manual * 1 (English manual .we have Electronic Russian manual, if you need, contact us. )


APP Download





1,All batteries are included for you.

2,If you need to know more about the information of this alarm system, please feel free to contact us and we will email you the Manual .Thanks for your attention and have a nice shopping time!


Packaging Details
  • Unit Type:
  • Package Weight:
    2.0kg (4.41lb.)
  • Package Size:
    10cm x 15cm x 10cm (3.94in x 5.91in x 3.94in)
