Product ID : 32818749264
Price : $49.99 – 99.98
Discount Price : $169.55 – 186.76

VISIT WEBSITE NOW

Item specifics
  • Application:
    Camera,Television,Multimedia,TV BOX,Computer,DVD Player,Projector,Monitor
  • Connector A:
    Coaxial,HDMI
  • Packing:
    Carton Box
  • Model Number:
    HSV191+HSV190 HDMI Extender over Coaxial Cable
  • Connector B:
    HDMI,Coaxial
  • Bundle:
    Bundle 1
  • Shielding:
    Non-Shielded
  • Type:
    Coaxial Cables
  • Gender:
    Male-Female
  • Package:
    Yes
  • Outer Diameter:
    HDMI Extender over Coaxial Cable
  • Brand Name:
    MiraBox
  • Feature:
    None
  • Product Name :
    HSV191+HSV190 HDMI Extender over Coaxial Cable
  • Standard Power Input :
    5V
  • Power Consumption :
    5W
  • HDMI Input :
    HDMI A-Type Female ports
  • SDI Output :
    BNC (SD-SDI/HD-SDI/3G-SDI)
  • SDI Transmission:
    2.970 Gbit/s and 2.970/1.001 Gbit/s
  • Resolution Supported :
    [email protected]/[email protected]/[email protected]

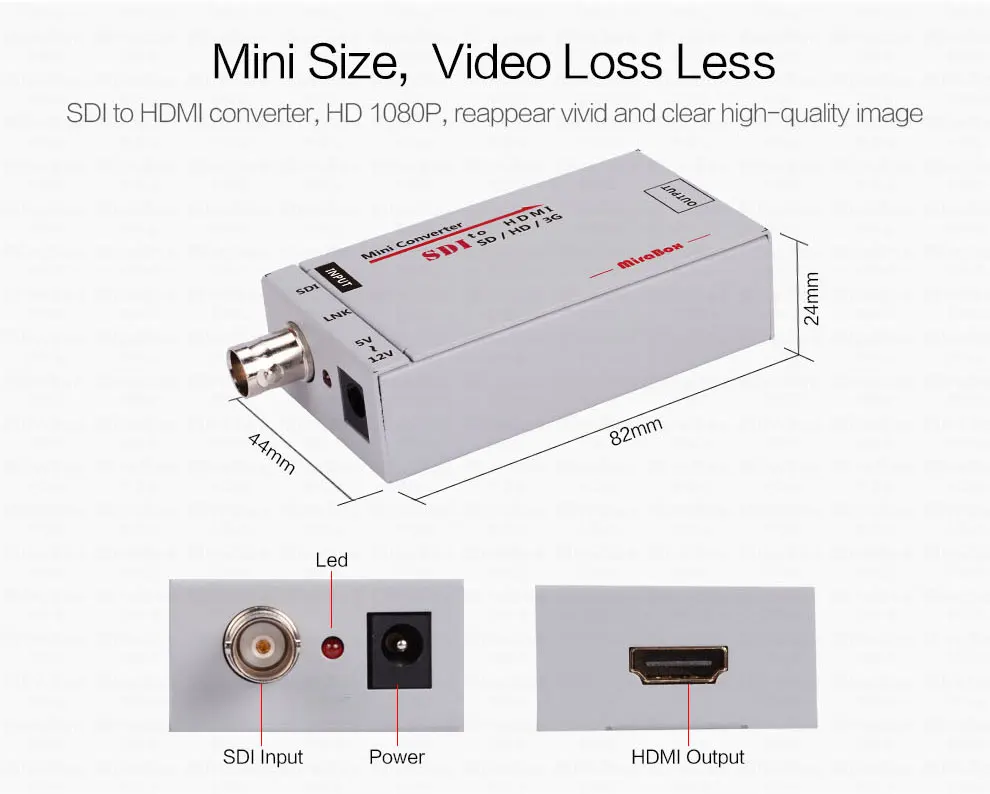

  • Product Dimension:
    10*6.8*2.3cm
  • Giftbox size:
    80mm*41mm*25mm
  • Warranty :
    12months
Product Description

MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (1)

MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable

191_190_379(IR)-EN

Introduction:

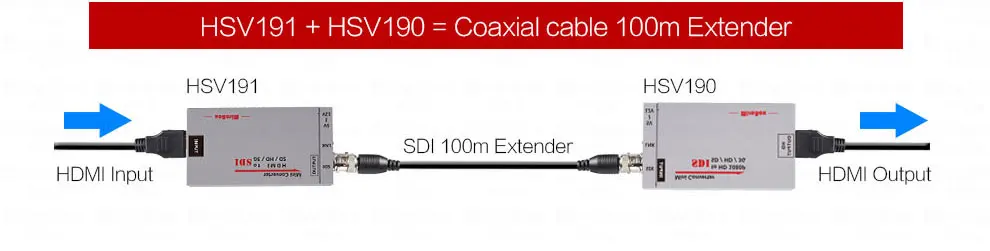

These Mini HDMI to SDI Converter & SDI to HDMI Converter can be installed together as HDMI Extender over Coxial cable up to 100meter.



MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (13)

Highlights:

1. SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
2. Supports HDMI input timings: [email protected] 59.94, 576i, [email protected] 50/59.94/60, [email protected] 50/59.94/60, [email protected] 23.98/24/25/29.97/30/50/59.94/60.
3. Converts HDMI signal to SDI:
– 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
– 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
– 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
4. Supports HDMI output distance up to 100 meters .


Operation controls and Functions:

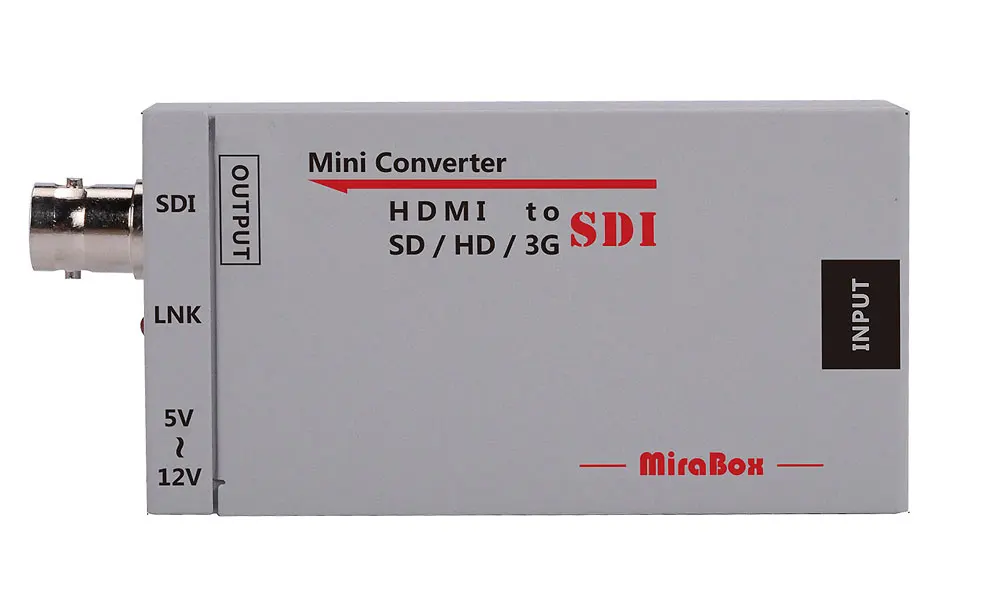

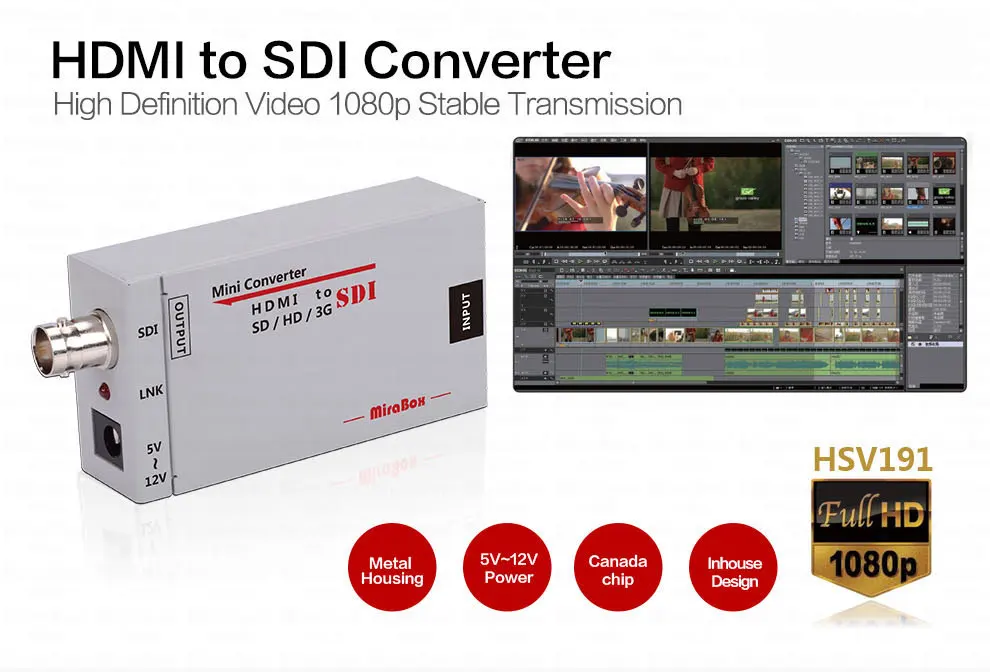

HSV191 HDMI to SDI Converter

1. HDMI IN: This slot is where you connect the HDMI source with HDMI cable.
2. POWER LED: This red LED illuminate when the device is connected with power supply.
3. DC IN: Plug the 5V-12V DC power supply into the unit.
4. SDI-OUT: This slot is where you connect the SDI display with coaxial cable.

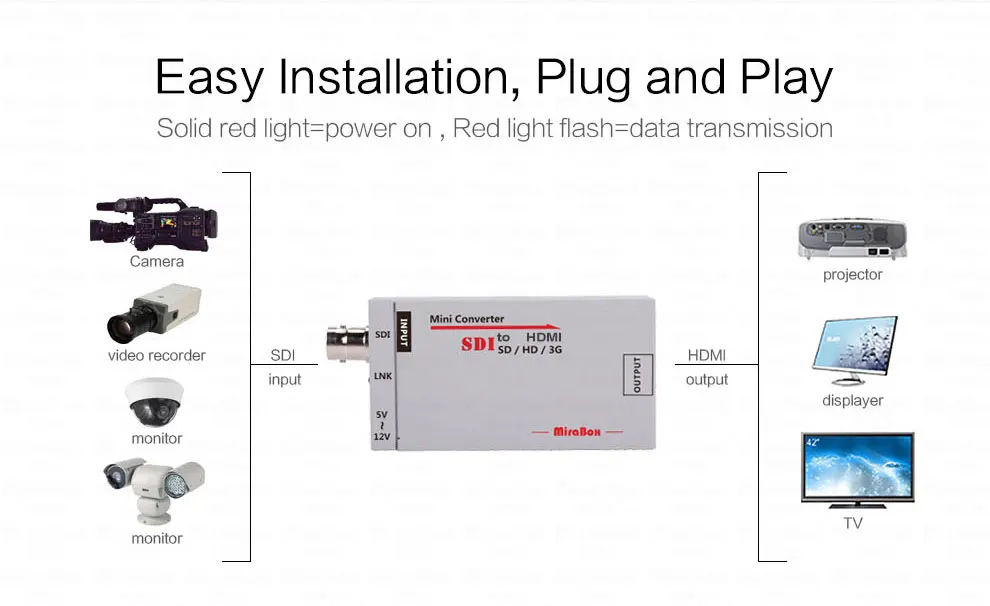

HSV190 SDI to HDMI Converter
1.SDI-IN: This slot is where you connect the SDI display with coaxial cable.
2. POWER LED: This red LED illuminate when the device is connected with power supply.
3. DC IN: Plug the 5V-12V DC power supply into the unit.
4. HDMI OUT: This slot is where you connect the HDMI source with HDMI cable.


Specifications

Item:  HSV191 Mini 3G HDMI to SDI converter, HSV190 Mini 3G SDI to HDMI converter
Power Input:  DC 5V
Power Consumption:  5W
SDI ouput: BNC(SDI/3G-SDI/HD-SDI)
HDMI intput: HDMI A-Type Female ports
SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s
ESD Protection:  ±8kV (air-gap discharge)  ±4kV (contact discharge)
Operating Temperature: 0°C ~ 60°C
Humidity: 20% ~ 90% RH(Non-condensing)

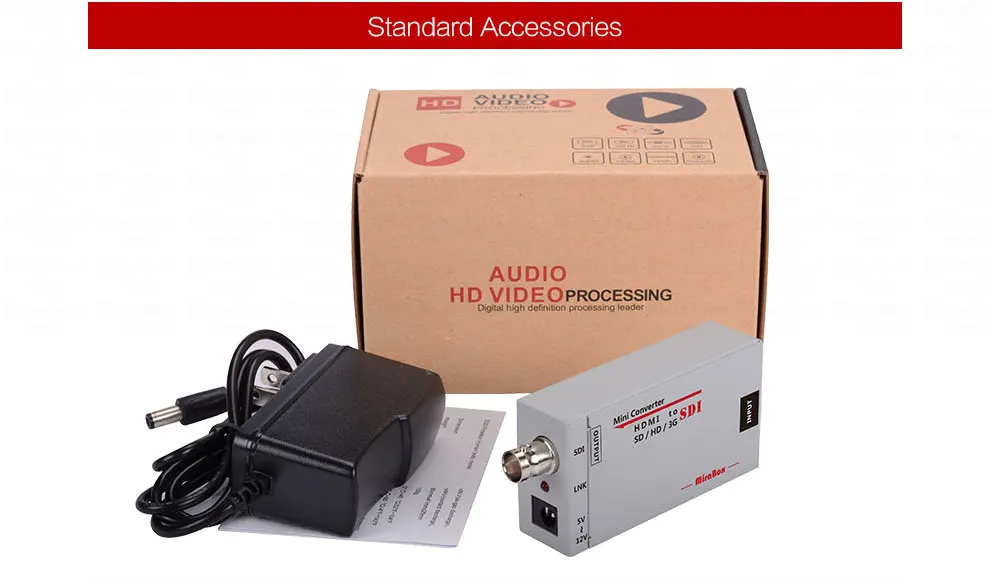

Package contents:

1)  "HDMI Extender " Item: HDMI to SDI converter*1,SDI to HDMI converter*1, 5V Power Adapter*2, User Manual*2
2)  "HSV191 HDMI to SDI" Item: HDMI to SDI converter*1,5V Power Adapter*1, User Manual*1
3)  "HSV190 SDI to HDMI" Item: SDI to HDMI converter*1, 5V Power Adapter*1, User Manual*1

MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (1)
MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (6)MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (10)
MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (2)
MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (2)MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (3)MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (5)
MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (13)MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (14)MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (16)MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (2)MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (3)MiraBox 100m HDMI over Coax Extender Mini Size HDMI to SDI Converter+SDI to HDMI Converter HDMI Extender over Coaxial Cable (4)

Packaging Details
  • Unit Type:
    piece
  • Package Weight:
    0.5kg (1.10lb.)
  • Package Size:
    35cm x 24cm x 18cm (13.78in x 9.45in x 7.09in)
